Crack Analysis

Our API 579 Level 3 Crack Analysis delivers precise, actionable insights to enhance the safety and reliability of your mechanical systems.

Crack Analysis as per API 579-1/ASME FFS-1

Our Crack Analysis services follow the detailed guidelines provided in API 579-1/ASME FFS-1 for Fitness-for-Service (FFS) assessments. We offer a comprehensive evaluation of components containing crack-like flaws, particularly in critical equipment such as pressure vessels and piping systems. The assessment helps determine the structural integrity and remaining life of components, ensuring they continue to operate safely.

Step-by-Step Process for Crack Analysis

Identification and Characterization of Crack-Like Flaws

The first step is to identify and characterize the crack, considering its:

Size and Shape: Measuring crack length, depth, and orientation.
Location: Determining the crack’s proximity to stress concentration areas, such as welds or nozzles.
Material Properties: Understanding material toughness, ductility, and any susceptibility to brittle fracture.
Data Collection: Gathering all necessary information, including inspection data, design specifications, and operational history, to form a complete picture of the flaw.

Assessment Levels Based on Flaw Severity

API 579-1/ASME FFS-1 provides three levels of crack assessment to accommodate varying degrees of flaw severity:

Level 1 Assessment:
- A conservative approach suitable for simpler cases, using general guidelines to assess whether the component is fit for continued service.
- Typically involves straightforward calculations without advanced modeling.
Level 2 Assessment:
- A more detailed analysis that uses analytical methods to evaluate crack behavior under specific operational loads.
- Suitable for components where a higher risk of crack growth exists.
Level 3 Assessment:
- The most rigorous assessment level, involving Finite Element Analysis (FEA) to simulate crack growth under complex loading conditions.
- Used for components with significant safety implications or where other assessment levels are inconclusive.

Stress Intensity Factor and Fracture Mechanics Evaluation

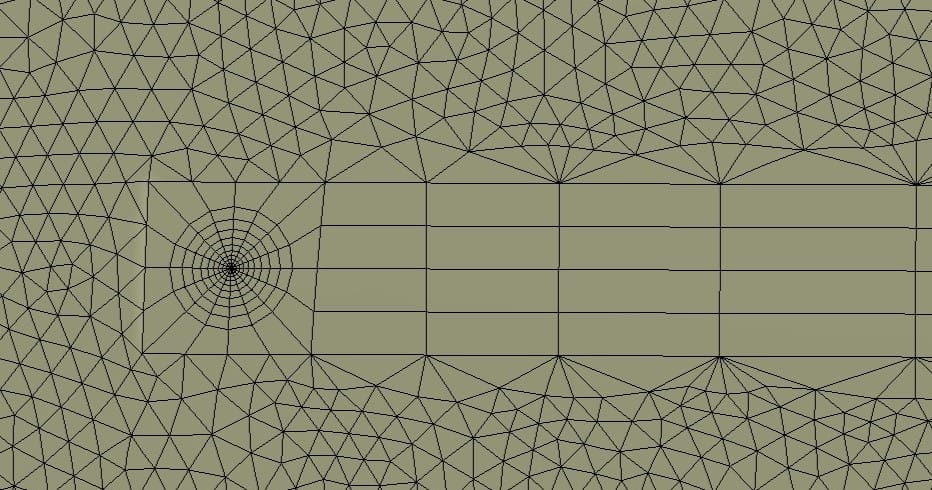

Stress Intensity Factor Calculation: Using FEA, we calculate the stress intensity factor (K) at the crack tip to understand stress distribution around the flaw.
Fracture Mechanics Analysis:
- Applying principles of fracture mechanics to assess the
  component’s ability to withstand further loading.
- Evaluating potential crack growth under various operational scenarios, including cyclic loading (fatigue).
Crack Growth Prediction:
- Estimating the rate and direction of crack propagation over time.
- Incorporating factors such as load cycles, environmental effects (e.g., corrosion), and material behavior.

Fitness-for-Service Evaluation

Determining Fitness-for-Service:
- Deciding if the component can continue operating safely, requires repair, or needs decommissioning.
Safety Margin Calculation: Incorporating safety factors to account for uncertainties in flaw size, material properties, and loading conditions.
Action Recommendations:
- Continued operation with regular monitoring.
- Repair options such as grinding or weld overlay.
- Replacement of the component if the crack is deemed
  unmanageable.

Compliance with API 579-1/ASME FFS-1 Standards

All assessments are performed following the specific guidelines outlined in API 579-1/ASME FFS-1 to ensure adherence to best industry practices.
Documentation and Reporting: Providing detailed reports outlining the assessment methodology, findings, and recommended actions.
